How to Choose the Right Decoder for Your Model Trains

Master digital control with the perfect decoder for every locomotive

Selecting the right decoder for your model railway isn't rocket science, but it's definitely more involved than grabbing the first one off the shelf. Whether you're converting an old HO locomotive to digital control or upgrading a modern N scale engine with sound capabilities, the decoder you choose will determine how smoothly your trains run and what features you can control.

This guide walks you through the essential decisions you'll face when choosing decoders. We'll cover everything from understanding digital protocols to measuring available space in your locomotives. You'll learn which train decoders work best with specific brands, how to match power requirements, and what features actually matter for your particular setup.

Decoder Selection: Key Takeaways
Decision Factor	What to Consider	Quick Action
Control Protocol	Match your decoder to your digital control system (DCC, mfx, or Selectrix)	Check your digital controller specifications first
Physical Interface	Identify socket type (NEM651, NEM652, Next18, PluX22) or hardwiring requirements	Open your locomotive and check for existing sockets
Available Space	Measure internal dimensions - height, width, length restrictions	Use callipers to measure precisely before purchasing
Power Requirements	Match decoder current rating to your motor's amperage draw	Check locomotive specifications or measure with multimeter
Function Outputs	Count required outputs for lights, sound, smoke, couplers	List all features you want to control digitally
Brand Compatibility	Some manufacturers have specific decoder requirements or recommendations	Check manufacturer documentation and our brand-specific guides
Sound Features	Decide if you want realistic engine sounds, announcements, or effects	Consider speaker placement and available space for sound decoders
Installation Method	Determine if you're comfortable with plug-in, basic wiring, or complex soldering	Choose decoder complexity based on your technical skills

Not sure where to start? Browse our complete range of digital control systems to understand which components work together before selecting individual decoders.

Understanding Digital Control Protocols

Before you even look at decoder specifications, you need to know what digital control system runs your layout. This isn't just about compatibility - it's about making sure your decoder can actually communicate with your controller properly. The three main protocols dominate the market, and each has its own quirks.

DCC (Digital Command Control) is the most common system you'll encounter. It's an open standard, which means decoders from different manufacturers generally work together without fuss. Most digital controllers support DCC, and the protocol handles everything from basic motor control to complex sound functions. If you're running HO locomotives or OO gauge engines, chances are you'll be using DCC decoders.

Märklin's mfx protocol offers some interesting advantages, particularly for beginners. The system automatically detects new locomotives when you place them on the track, assigns addresses, and configures basic settings without manual programming. However, mfx is primarily used with Märklin's 3-rail system, so unless you're specifically running Märklin trains, you probably won't need mfx-compatible decoders.

Selectrix represents the older generation of digital control. Whilst still functional, it's largely been superseded by DCC and mfx systems. You might encounter Selectrix if you're working with vintage European model railways or inherited layouts, but finding compatible decoders is becoming increasingly difficult.

The key point here is simple: match your decoder protocol to your control system. There's no point buying the most advanced DCC sound decoder if your layout runs on Märklin's mfx system. Check your digital control system documentation before making any decoder purchases.

Decoder Interface Types and Socket Compatibility

Modern locomotives often come with standardised sockets that make decoder installation straightforward. However, these sockets vary significantly between scales and manufacturers, and choosing the wrong interface type means your decoder simply won't connect.

Interface Type	Pin Count	Typical Scales	Common Applications
NEM651	6-pin	N, TT scales	Basic motor and lighting control
NEM652	8-pin	HO, OO, most common	Motor, front/rear lights, function outputs
Next18	18-pin	Small N scale, compact HO	Multiple functions in minimal space
PluX22	22-pin	HO, OO with advanced features	Sound, multiple lights, complex functions
Hardwired	Variable	All scales	Older locos, custom installations

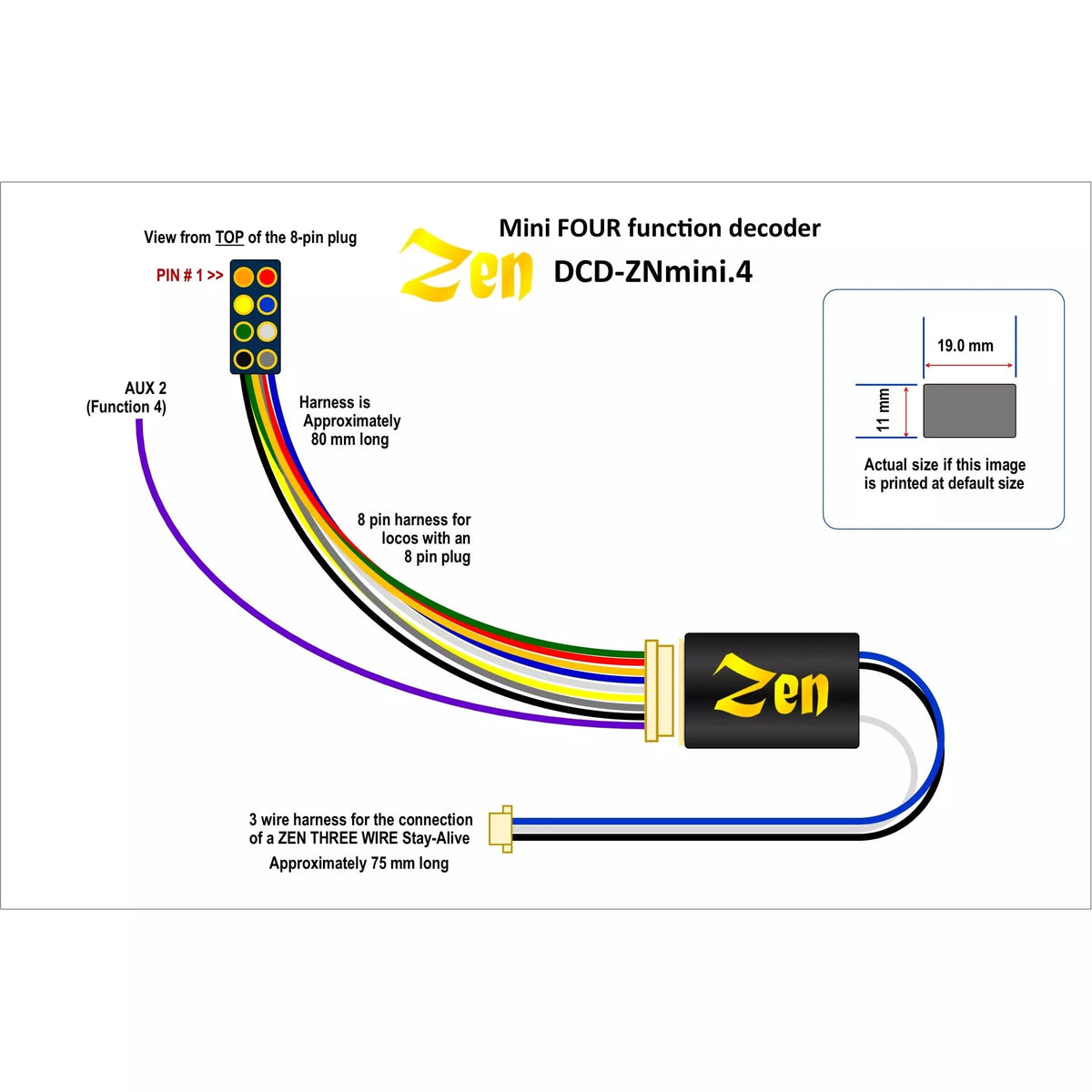

NEM652 is probably the interface you'll encounter most often, especially if you're working with Hornby locomotives or Bachmann models. This 8-pin socket provides connections for the motor, track pickups, and basic lighting functions. Most train decoders in our range use this standard, making them compatible with a wide variety of locomotives.

The newer Next18 standard crams 18 connections into a space smaller than the traditional 8-pin socket. This makes it ideal for N scale locomotives where space is at a premium, but you still want multiple function outputs. However, Next18 decoders tend to be more expensive due to their compact design and advanced manufacturing requirements.

PluX22 sockets appear in locomotives designed for advanced digital features. The extra pins provide dedicated connections for sound systems, multiple lighting circuits, and accessory functions like smoke generators or automatic couplers. If you're planning to add realistic sound to your locomotive sets, look for models with PluX22 interfaces.

Hardwired installations require direct soldering to the locomotive's circuit board or motor connections. Whilst this approach offers maximum flexibility, it demands more technical skill and time. Older locomotives without standardised sockets, or budget models that skip the interface altogether, will need hardwired decoders.

Physical Space and Measurement Considerations

Size matters when it comes to decoder installation, especially in smaller scales. You might find the perfect decoder with all the features you want, only to discover it won't physically fit inside your locomotive. This problem is particularly acute with N scale engines and narrow gauge models like OO9 locomotives.

Start by removing your locomotive's body shell and examining the available space. Look for areas where the decoder could sit without interfering with the motor, drive wheels, or other mechanical components. Pay particular attention to height restrictions - many decoders are taller than they are wide, and clearance above the circuit board is often limited.

Measure three dimensions: length, width, and height. Use digital callipers if you have them, as accuracy is crucial. A decoder that's even a millimetre too large won't fit, and forcing it can damage both the decoder and your locomotive. Don't forget to account for wire routing and any additional components like speakers for sound decoders.

Some manufacturers specify decoder dimensions in their product listings, but these measurements don't always account for wire connections or heat sinks that might extend beyond the main circuit board. When in doubt, choose a decoder that's slightly smaller than your available space rather than trying to squeeze in something that's borderline.

Sound decoders present additional challenges because they require speakers, and speakers need enclosures or baffles to produce good sound quality. Factor in speaker placement when measuring decoder space - there's no point installing a sound decoder if you can't fit an adequate speaker system.

Power Requirements and Current Ratings

Decoders have limits on how much current they can safely handle, and exceeding these limits leads to immediate failure or shortened lifespan. Motor current draw varies significantly between different locomotives, so you can't assume that one decoder will work for all your engines.

Locomotive Type	Typical Current Draw	Recommended Decoder Rating
N scale single motor	0.3-0.6 amps	1.0 amp minimum
HO/OO standard locomotive	0.5-1.2 amps	1.5-2.0 amp rating
Large HO diesel or electric	1.0-1.8 amps	2.5 amp rating
Multiple unit or dual motor	1.5-3.0 amps	4.0+ amp rating

Check your locomotive's documentation for current specifications, but don't rely solely on manufacturer claims. Older locomotives, poorly maintained models, or those with binding mechanisms can draw significantly more current than specified. If you have a multimeter, measure the actual current draw by connecting it in series with your locomotive's motor whilst running under load.

Function outputs also consume current, though typically much less than the main motor. LED lighting draws minimal power, but incandescent bulbs, smoke units, and sound systems can add considerable load. Calculate total current requirements by adding motor draw plus all active functions.

Always choose a decoder with a current rating well above your measured requirements. A 20-30% safety margin prevents nuisance trips and extends decoder life. Remember that current ratings often assume good ventilation and moderate ambient temperatures - decoders running in confined spaces may need even more headroom.

Some decoders include current limiting or thermal protection features that reduce power automatically if limits are exceeded. These safety features can prevent decoder failure but may result in reduced locomotive performance under heavy loads.

Brand-Specific Compatibility and Requirements

Different locomotive manufacturers have varying approaches to digital readiness, and understanding these differences helps you choose appropriate decoders. Some brands make decoder installation straightforward, whilst others require specific products or additional modifications.

Hornby locomotives typically use standard NEM652 sockets in their DCC-ready models, making decoder installation relatively simple. However, space can be tight in Hornby models, particularly in their smaller steam locomotives. The company also produces locomotives with factory-fitted decoders, which are worth considering if you want guaranteed compatibility.

Bachmann Branchline models often provide more internal space for decoders and speakers, making them popular choices for sound installations. Many Bachmann locomotives come with NEM652 sockets, though some older models require hardwiring. The company's documentation typically includes specific decoder recommendations for each model.

Kato locomotives sometimes use proprietary interfaces that require Kato-specific decoders or adapter boards. This isn't necessarily a problem, but it does limit your decoder choices and may increase costs. Check compatibility carefully before purchasing decoders for Kato models.

When working with less common brands or older models, consult our digital accessories section for adapter cables and interface converters that can expand your decoder options.

Australian prototype locomotives often have unique requirements due to their distinctive lighting arrangements and operational features. Models representing Australian locomotives may need decoders with specific function outputs to properly replicate prototype lighting patterns or operational procedures.

British outline models, particularly those representing modern EMUs or diesel multiple units, sometimes require decoders capable of handling multiple motors or complex lighting sequences. Consider these requirements when selecting decoders for UK prototype models.

Sound Decoder Features and Speaker Requirements

Sound decoders transform the operating experience by adding realistic engine sounds, horns, bells, and ambient effects. However, they require careful consideration of both decoder capabilities and speaker installation requirements.

Modern sound decoders store hundreds of authentic recordings digitally, allowing them to replicate everything from engine startup sequences to realistic acceleration and braking sounds. The quality varies significantly between manufacturers and price points, so listen to sample recordings before purchasing if possible.

Speaker selection and installation often determines sound quality more than the decoder itself. Larger speakers generally produce better sound, but space constraints in model locomotives limit your options. Round speakers are common, but oval or rectangular speakers sometimes fit better in confined spaces.

Speaker enclosures or baffles dramatically improve sound quality by preventing sound waves from the front and back of the speaker from cancelling each other out. Some modellers create custom enclosures from brass or plastic, whilst others use commercially available baffle systems designed for model railway applications.

Speaker Size	Suitable Applications	Sound Quality	Installation Difficulty
8mm round	N scale, compact installations	Basic, limited bass response	Easy, fits most locations
16mm round	HO/OO standard installations	Good overall performance	Moderate, requires planning
23mm x 18mm oval	Larger HO/OO locomotives	Excellent, good bass	Complex, may require modifications

Consider the locomotive's prototype when selecting sound files. A diesel sound decoder in a steam locomotive sounds wrong, and even within diesel categories, different engine types produce distinctly different sounds. Many decoders allow you to load custom sound files, providing flexibility for specific prototypes.

Volume control is crucial for home layouts. Most sound decoders include master volume adjustment plus individual controls for different sound categories. This lets you balance engine sounds against horns, bells, and other effects according to your preferences and operating environment.

Installation Methods and Technical Requirements

The installation method you choose depends on your technical skills, available tools, and locomotive design. Each approach has advantages and limitations that affect both installation difficulty and final performance.

Plug-and-play installations offer the simplest approach for locomotives with standardised sockets. Remove the factory circuit board or blanking plug, insert the decoder, and replace the body shell. This method requires no soldering and minimal tools, making it accessible to beginners.

However, plug-and-play installations sometimes compromise on performance. The standardised pinouts may not utilise all available decoder functions, and physical constraints can limit decoder choice. Some locomotives also require minor modifications even with "plug-and-play" decoders.

Hardwired installations provide maximum flexibility and often better performance. You can choose decoders based purely on features rather than physical interface requirements, and wire routing can be optimised for each specific locomotive. The downside is increased complexity and the need for soldering skills.

Essential tools for decoder installation include a temperature-controlled soldering iron, fine-tip tweezers, wire strippers, and flux. Good lighting and magnification help when working with small components. Keep a multimeter handy for testing connections and troubleshooting problems.

Practice soldering techniques on old circuit boards before working on expensive locomotives. Clean solder joints are crucial for reliable operation, and poor soldering can damage both decoders and locomotives. If you're not comfortable with soldering, consider having installations done professionally.

Test every installation thoroughly before final assembly. Check basic motor operation, all lighting functions, and any sound features. Verify that the locomotive runs smoothly in both directions and that all programmed features work as expected. Address any issues whilst the locomotive is still easily accessible.
