Here's the scenario: you've got multiple train controllers ready to transform your layout into a properly operational railway, but the moment you wire them up, chaos ensues. Trains stop mid-track, lights flicker like a disco, and that expensive sound-equipped diesel makes noises it definitely shouldn't. Welcome to the wonderful world of signal conflicts - the bane of every modeller who's tried running multiple controllers without proper planning.

After helping countless customers troubleshoot their wiring nightmares at Hearns Hobbies, we've seen every possible combination of crossed wires, feedback loops, and power conflicts. The good news? Most signal conflicts are completely preventable with proper understanding of how track power works and some basic electrical principles. No engineering degree required - just patience and methodical approach.

Whether you're expanding from single to dual cab control, setting up a complex DCC system with multiple boosters, or trying to run separate loops independently, signal conflicts can turn your dream layout into an electrical nightmare. But here's what most people don't realise: the problem isn't usually the controllers themselves - it's how we connect them to our layouts and, more importantly, how we isolate different power districts.

This guide cuts through the confusion with practical solutions that actually work. We'll explore everything from basic DC cab control wiring to advanced DCC configurations, common-rail versus dual-rail systems, and those tricky transition zones that cause so many headaches. By the end, you'll understand not just how to wire multiple controllers, but why certain methods work and others lead to expensive magic smoke.

Understanding Signal Conflicts and Power Feedback

Signal conflicts happen when two different electrical signals meet on the same piece of track. Think of it like trying to push water through a pipe from both ends simultaneously - something's gotta give, and in model railways, that usually means blown controllers, fried decoders, or at minimum, trains that refuse to behave. The physics is simple: electricity follows the path of least resistance, and when two power sources meet, they'll fight for dominance.

The most common conflict occurs when crossing from one power district to another without proper isolation. Your locomotive becomes a bridge, connecting two potentially different voltages or polarities through its wheels and pickups. In DC systems, this might reverse your train unexpectedly. In DCC systems, it can cause short circuits that trigger protection circuits - if you're lucky. If you're not, you'll be shopping for new decoders.

Power feedback is the sneakier cousin of signal conflicts. This happens when power from one controller finds an unintended path back through your wiring, often through turnouts or reverse loops. You'll know it's happening when trains in supposedly isolated sections start responding to the wrong controller, or when your circuit breakers trip for no apparent reason. It's particularly problematic with older controllers that lack modern protection circuits.

Understanding phase differences is crucial too, especially with multiple DCC boosters. Even though they're all putting out the same DCC signal, if they're not synchronised, the square waves can be out of phase. When a loco crosses between districts, it momentarily connects these out-of-phase signals, causing anything from a brief stutter to a complete system shutdown. Modern boosters often include phase synchronisation, but it's still something to watch for.

DC Cab Control: The Traditional Approach

Cab control remains the backbone of multi-controller DC operation, and despite what the DCC evangelists might tell you, it's still perfectly viable for many layouts. The principle is beautifully simple: divide your layout into electrically isolated blocks, then use switches to assign each block to different controllers (cabs). It's like having multiple TV remotes - only one controls the telly at a time.

The classic approach uses rotary switches or toggle switches to select which cab controls each block. A typical setup might have Cab A and Cab B, with a row of switches determining which cab powers each section of track. Want to hand off a train between operators? Simply flip the switches as the locomotive progresses. It requires coordination between operators, but that's half the fun of group operating sessions.

Wiring cab control properly means understanding the difference between "blocks" and "sections." Blocks are your basic isolated track segments, usually corresponding to logical divisions like stations, sidings, or mainline segments. Sections are smaller isolation zones within blocks, often used at turnouts or crossings to prevent shorts. Get this hierarchy right, and cab control becomes intuitive. Get it wrong, and you'll be constantly fighting dead spots and conflicts.

The beauty of cab control is its transparency - you can literally see which controller runs what by looking at your control panel. No programming, no addresses, no computer needed. When something goes wrong, troubleshooting is straightforward: check the switches, check the gaps, check the feeders. This simplicity is why many exhibition layouts still use cab control - it's bombproof when done right.

Block Wiring Fundamentals

Block wiring is where theory meets reality, and honestly, where most people stuff it up. The concept seems simple enough - cut gaps in your rails to create isolated sections, then wire each section independently. But the devil's in the details, and those details can mean the difference between smooth operations and constant electrical gremlins. Let's get into the nitty-gritty of doing it properly.

First rule: every block needs TWO gaps, not one. Sounds obvious, but you'd be amazed how many people gap one rail and wonder why things short out. Both rails must be gapped at exactly the same spot, creating complete electrical isolation. Use a razor saw for clean cuts, not side cutters which can deform the rail. Insulated rail joiners work too, but they're visible and can work loose over time.

Block boundaries should follow operational logic, not arbitrary distances. Place them where trains naturally stop or slow - station throats, signal locations, before and after turnouts. A good rule of thumb: blocks should be at least as long as your longest train plus 10%. This prevents a single train from bridging blocks unnecessarily. For hidden staging or storage tracks, each track should be its own block - trust us, you'll thank yourself during operating sessions.

Feeder placement is critical for reliable operation. Every block needs at least two feeders - one per rail - soldered to the rails about 1/3 of the way in from each end. Why not dead centre? Because trains slow down at block boundaries when crossing gaps, and having feeders closer to the ends maintains better power delivery during transitions. Use proper rail feeders, not just bare wire twisted around the rail.

The forgotten fundamental: consistent polarity. Mark one rail as "Rail A" and maintain that designation throughout your entire layout, even across blocks and controllers. Use coloured paint dots on the rail undersides if needed. This consistency prevents accidental reverse polarity when wiring blocks and makes troubleshooting infinitely easier. We've seen layouts where polarity flips randomly between blocks - absolute nightmare to fix.

Common Rail vs Dual Rail Systems

Here's where model railway forums explode into civil war: common rail versus dual rail wiring. Common rail uses one continuous rail as the return path for all controllers, switching only the "hot" rail between cabs. Dual rail (or dual cab) isolates both rails and switches both. Neither is inherently superior - it's about choosing the right tool for your specific layout needs.

Common rail wiring simplifies everything, which is why it was standard practice for decades. You run one continuous bus wire for the common rail (usually the left rail, looking in the direction of travel), then switch only the right rail between controllers. This halves your switching requirements - instead of needing double-pole switches for every block, single-pole does the job. Your control panel stays manageable, and wiring is more straightforward.

The catch with common rail? Reverse loops become problematic, and mixing common rail with DCC is asking for trouble. Some modern controllers, particularly those with advanced short-circuit protection, don't play nicely with common rail either. They expect to see their own return path and can interpret the common rail as a short circuit. If you're planning future DCC conversion, avoid common rail - converting it later is a proper pain.

Dual rail wiring gives complete isolation between controllers, eliminating any possibility of sneak paths or ground loops. Each controller has its own completely separate circuit, meeting only at the rails through the train. This is essential for DCC systems with multiple boosters, and it's more forgiving of wiring mistakes. The downside? Twice the switches, twice the wiring complexity, and a control panel that can look like mission control.

DCC with Multiple Boosters and Districts

Running DCC with multiple boosters opens up incredible operational possibilities, but it also introduces complexity that makes DC cab control look like child's play. The beauty of DCC is that all boosters output the same signal - they're just amplifying it to different parts of your layout. The challenge is keeping those amplified signals from fighting each other at district boundaries.

Power districts in DCC serve a different purpose than DC blocks. Instead of routing control, they're about managing current draw and protecting equipment. A typical HO or OO scale booster provides about 5 amps - enough for maybe 4-5 sound locos or 8-10 silent ones running simultaneously. Larger layouts need multiple boosters not for control complexity, but simply to provide enough juice. Each booster feeds a district, completely isolated from others.

The critical difference between DCC districts and DC blocks: trains cross district boundaries at full speed without stopping or switching. This means your isolation and phase management must be perfect. Most modern boosters include auto-reverse capability for phase matching, but you still need proper gapping and potentially circuit breakers at boundaries. A short in one district shouldn't take down the entire layout.

Here's what catches people out: ground loops in DCC systems. If your boosters share a common ground (through house wiring or metal benchwork), you can create sneak current paths that cause mysterious shutdowns. Each booster should have its own isolated power supply, and if you're using metal benchwork, be very careful about grounding. Some folks run separate ground wires between boosters to ensure consistent ground reference without creating loops.

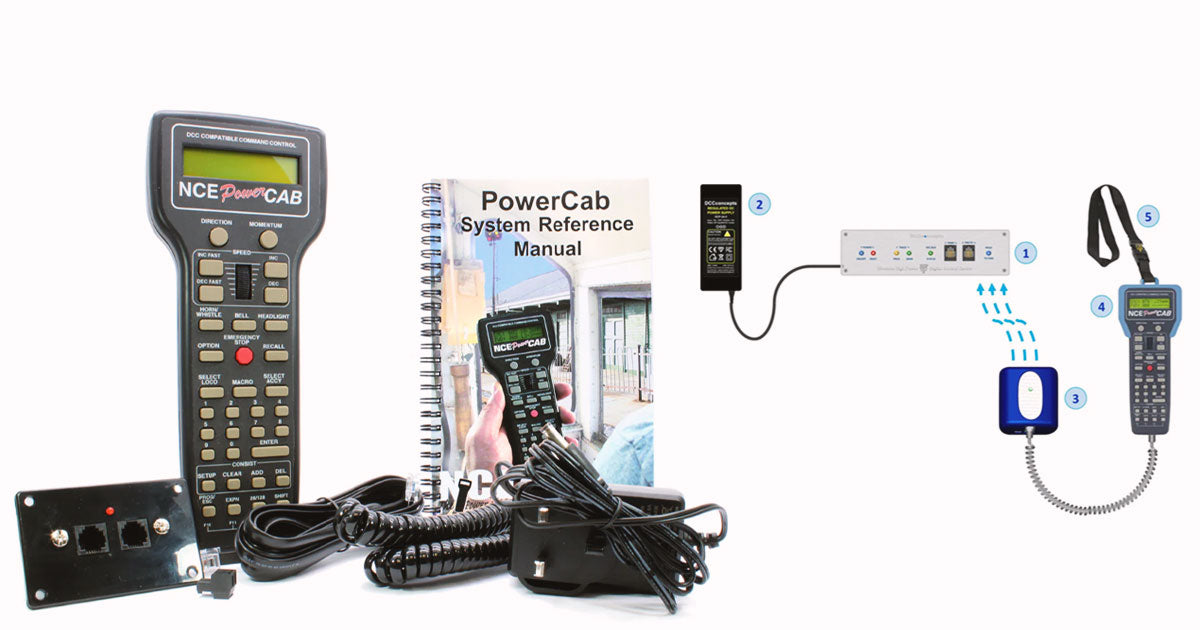

Setting up multiple throttles is the easy part of DCC - they all connect to the command station via the throttle bus (Loconet, XpressNet, or similar). The command station talks to all boosters through the control bus, synchronising the DCC signal. This separation of control and power is DCC's greatest strength. You can have ten people operating trains without any cab selection switches - the system handles all routing automatically.

Isolation Techniques and Gap Creation

Creating proper isolation gaps is an art form that separates professional layouts from amateur hour. It's not just about cutting the rails - it's about maintaining structural integrity, ensuring long-term reliability, and making gaps invisible to the casual observer. After years of fixing dodgy gap work, we've developed techniques that actually last.

The standard gap-cutting method uses a razor saw with a 0.010" blade. Cut straight down, perpendicular to the rail, going completely through the rail head and web. Don't cut into the plastic sleepers - you'll weaken the track. After cutting, check with a multimeter to ensure complete isolation. The number of times we've seen partial cuts that look fine but still conduct electricity... honestly, just check every gap.

For filled gaps that stay invisible, here's the professional method: after cutting, slightly widen the gap to about 0.5mm using a jeweller's file. Insert a piece of 0.020" styrene strip, trimmed to match the rail profile. Fix in place with ACC glue (cyanoacrylate), then carefully file and sand flush with the rail top. Paint with rail colour and you've got an invisible, permanent gap that won't close up over time.

Insulated rail joiners seem easier but come with trade-offs. They're visible, can work loose with temperature changes, and create a mechanical weak point in your track. If you use them, always solder a feeder wire to each rail section adjacent to the joiner. This maintains electrical connectivity when (not if) the joiner loosens. Some modellers replace metal joiners with plastic ones after track is laid and painted - fiddly but effective.

The secret weapon for complex trackwork: dead sections. These are short isolated track segments (about 10cm) between power districts that prevent bridging. Power them through a centre-off DPDT switch so they can connect to either adjacent district or remain dead. This gives operators control over handoffs and prevents accidental shorts when districts are out of phase. Particularly useful at busy junctions.

Switch and Selector Panel Design

Your control panel is the interface between you and your railway empire, and a poorly designed one turns operating sessions into frustrating switch-hunting expeditions. We've seen everything from beautifully crafted traditional panels to touchscreen interfaces, but the principles of good design remain constant. Form follows function, but that doesn't mean it can't look brilliant too.

Track diagrams versus geographical panels is the eternal debate. Track diagrams show the schematic track arrangement with switches positioned logically along the routes - perfect for understanding connections but can be confusing for newcomers. Geographical panels mirror the actual layout arrangement, making it intuitive to find controls but potentially cramped in complex areas. Our recommendation? Use track diagrams for hidden staging, geographical for visible portions.

Switch selection matters more than you'd think. Rotary switches for cab selection give clear visual indication of routing and prevent accidentally selecting multiple cabs. Toggle switches work for simple on/off functions but can be confusing in banks. Push buttons suit momentary functions like turnout control. Whatever you choose, maintain consistency - don't mix toggle directions or knob styles randomly.

Modern approaches include computer control and touch panels, but don't dismiss traditional methods too quickly. Physical switches provide tactile feedback and work instantly without boot-up times or software glitches. Many operators prefer the satisfying click of throwing a proper switch. If you go digital, always include manual override capability - murphy's law guarantees your computer will crash during the most important operating session.

LED indicators transform panel usability. Use different colours consistently - green for selected/active, red for occupied/fault, yellow for caution/pending. Bi-colour LEDs can show cab assignment at a glance. Include a master power indicator and ideally individual indicators for each power district. The small cost of LEDs pays huge dividends in operational clarity.

Troubleshooting Common Wiring Issues

When things go wrong with multiple controller setups - and they will - systematic troubleshooting beats random wire wiggling every time. The most common issues follow predictable patterns, and once you know what to look for, fixing them becomes straightforward. Keep a multimeter handy; it's your best diagnostic tool after your eyes and brain.

Dead spots are the most frequent complaint. Train runs fine, then stops dead at seemingly random locations. First, check for dirty track - yes, even with multiple controllers, dirty track is still problem number one. If cleaning doesn't help, test for power at the dead spot with your meter. No power? Check feeders, then work backwards through your blocks and switches. Often it's a loose connection at a terminal strip or a switch that's not making proper contact.

Short circuits that trip breakers immediately usually mean crossed feeders or reversed polarity. Disconnect all controllers and test each block independently with a single controller. When you find the problem block, check that rail A is consistent throughout. Look for feeders soldered to the wrong rails - it's easier to do than you'd think, especially under the layout. Metal wheels bridging at turnout frogs are another common culprit.

Intermittent problems are the absolute worst to diagnose. Train runs fine for twenty minutes, then suddenly reverses or stops. Temperature changes causing rails to expand and close gaps is one possibility. Loose rail joiners creating intermittent connections is another. Sometimes it's a dodgy switch on your control panel that makes contact only when the planets align. Document when and where problems occur - patterns often emerge that point to the cause.

The "phantom train syndrome" - locomotives creeping or lights flickering when they shouldn't be running - indicates sneak current paths. Common rail systems are particularly susceptible. Check for bridges between blocks through switch machines, structure lighting, or even signal systems. Metal wheelsets can create unexpected paths through sidings. Sometimes the fix is as simple as adding another isolation gap.
