G'day everyone! After our recent video on DCC programming, we realised we'd put the cart before the horse a bit. Several of you pointed out (quite rightly) that we should've shown you how to actually install a decoder before diving into programming them. So today, let's fix that with a proper hands-on guide to installing DCC decoders in your locomotives.

If you've been hesitating to make the jump to digital control because decoder installation seems daunting, you're not alone. We see heaps of modellers at our Melbourne shop who are keen on DCC but worried about damaging their precious locos. The good news? It's actually much simpler than you might think, and with modern "DCC Ready" locomotives, it's often just a matter of plugging in the right chip.

We'll be walking through several different decoder types today - from the common 8-pin setups found in most Hornby models to the more advanced 21-pin decoders used in SDS Models. We've grabbed a selection of locomotives from our shelves to demonstrate, including a Hornby 08 shunter, an SDS C38, and even an older non-DCC-ready model to show you what's involved in a hardwire installation.

Understanding DCC Decoder Basics

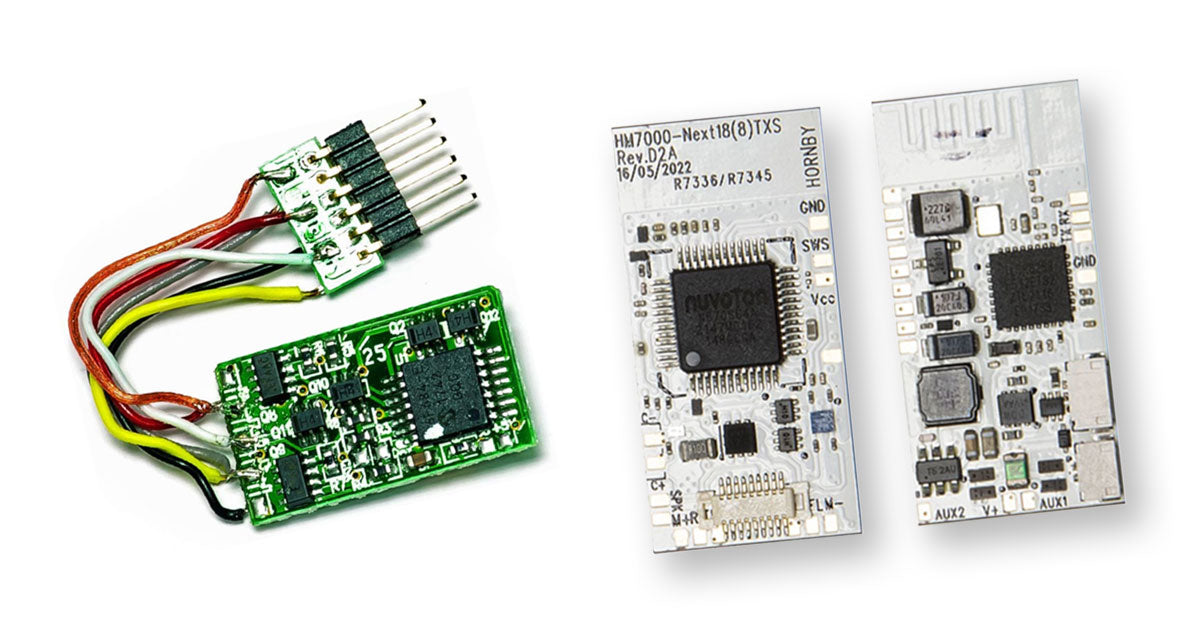

Before we start pulling locomotives apart, let's quickly cover what a DCC decoder actually is. Essentially, it's a small circuit board - think of it as a tiny computer chip - that interprets digital signals from your DCC controller and tells your locomotive what to do. These chips come in various sizes and configurations, from tiny 6-pin versions perfect for N scale to larger 21-pin decoders with advanced functionality.

The decoder connects between your track power pickups and the motor, with additional connections for lights and other functions. Most modern decoders from brands like DCC Concepts also include connections for "stay-alive" capacitors, which help prevent stuttering over points and dirty track sections - particularly useful for small shunting engines that spend their lives crawling through complex trackwork.

When we talk about "DCC Ready" locomotives, we mean they come with a socket already installed. You'll find a blanking plate (dummy plug) in place that keeps the loco running on DC power. Simply remove this plug, insert your decoder, and you're ready for digital operation. It's honestly that simple for most modern OO scale and HO scale models.

Installing an 8-Pin Decoder (Hornby 08 Example)

Let's start with the most common scenario - installing an 8-pin decoder in a Hornby locomotive. We're using an 08 shunter for this demo, which represents a typical installation you'll encounter. These little diesel shunters are brilliant for yard work but can be a bit tight on space, making decoder selection important.

First step is getting the body off. On the Hornby 08, you'll need to remove four screws - two at the front and two at the back. There are also these little cylinders at the front that are friction-fitted. Don't force anything; if it feels stuck, check you haven't missed a screw. We've seen plenty of broken body clips from overeager modellers, and trust me, explaining that to the missus when you've broken your birthday present isn't fun.

Once inside, you'll spot the 8-pin socket immediately. It'll have a blanking plate installed if the loco's DC-only. Hornby thoughtfully marks their blanking plates with an arrow pointing to pin 1, which matches up with a marking on the socket. This orientation is crucial - get it wrong and your loco will run backwards when you think it should go forwards. Not the end of the world, but annoying to fix.

For the 08, space is at a premium. You'll notice there's a cab interior that blocks off part of the available room. While you could remove it for more decoder space, most modellers prefer keeping the detail. This is where smaller decoders or those with harnesses really shine. A 6-pin decoder with an 8-pin harness adapter gives you flexibility to position the decoder where it fits best, maybe tucking it behind the cab or alongside the motor.

When inserting the decoder, line up pin 1 carefully. The decoder should slide in without force - if you're having to push hard, stop and check alignment. Once seated properly, you might want to add a small piece of electrical tape to keep everything secure, especially if using a harness that adds extra wire length.

Before reassembling, test it! Pop the chassis on your programming track and check it responds to address 3 (the default). If the loco runs backwards when you select forward, you've got it in wrong - just flip the decoder 180 degrees. We see this mistake at least once a week in the shop, so don't feel bad if it happens to you.

Working with 18-Pin Decoders (SDS C38)

The 18-pin standard is becoming increasingly popular, especially with N scale and newer Australian outline models. Our SDS C38 makes a perfect example - these beautiful streamlined locomotives come DCC-ready with the decoder socket in the tender.

What's brilliant about the SDS implementation is they've pre-installed speakers in the tender, even on DC models. This means if you decide to upgrade to sound later, you're already halfway there. The speakers connect via two small contact pins, though you might need to add a blob of solder to ensure good connection - we learned that one the hard way after intermittent sound issues.

Accessing the 18-pin socket in the C38 tender requires removing the body shell, which clips on quite firmly. Be patient here - these clips can be tight, especially on new models. A small flathead screwdriver can help, but be gentle to avoid marking the paintwork. Once inside, you'll see the compact 18-pin decoder socket alongside the speaker enclosures.

The 18-pin decoders themselves are remarkably small - about the same size as a 6-pin decoder despite having three times the connections. This makes them perfect for installations where space is limited but you want full functionality including multiple lighting outputs. They're also less prone to orientation mistakes than 8-pin decoders, though you still need to check that pin 1 alignment.

21-Pin Decoder Installation (SDS D3)

Moving up to the premium end, 21-pin decoders are the gold standard for serious model railway enthusiasts. The SDS D3 class locomotives showcase this system beautifully. These models come with extensive lighting functions, pre-installed speakers, and even provision for stay-alive capacitors.

The best part about 21-pin installations? You literally cannot install them incorrectly. The pin layout is asymmetrical, so the decoder only fits one way. No more worrying about backwards-running locos or checking pin orientations with a magnifying glass. Just line it up and press gently until seated.

Opening the D3 tender is straightforward - just two or four screws depending on your production run. SDS has refined their design over the years, with newer models featuring improved speaker mounting that prevents the vibration issues some early adopters experienced. Inside, you'll find a sophisticated setup with multiple wire connections for track pickups, lighting circuits, and speaker connections.

What really sets these premium models apart is the attention to electrical design. Multiple pickup points ensure reliable operation, capacitor provisions eliminate stuttering, and separate circuits for each lighting function allow incredible flexibility in operation. Yes, you're paying more for models like this compared to basic diesel locomotives, but you're getting exponentially more functionality.

The 21-pin standard also supports advanced features like multiple auxiliary functions, servo outputs for animated features, and sophisticated lighting effects. If you're planning to add working ditch lights, a rotating beacon, or even smoke units, 21-pin is the way to go.

Hardwiring Older Models

Now for the challenging bit - what about locomotives that predate DCC-ready sockets? We've grabbed an old Hornby 0-4-0 "Connie" to demonstrate. These simple models represent thousands of locomotives in Australian collections that were never designed for DCC but can still be converted with some basic skills.

Opening Connie reveals a wonderfully simple mechanism - motor, basic pickups, and not much else. There's even a capacitor for radio interference suppression (remember when that was a concern?). The motor sits under a spring clip with direct connections to the wheel pickups via basic brass wipers. It's about as simple as model railway mechanisms get.

To convert this to DCC, you need just four wires: two for track power (red and black) and two for the motor (orange and grey). The trick is isolating the motor from the track pickups - in DC, they're connected directly, but DCC needs the decoder in between. This means cutting the existing wires and installing the decoder inline.

Space isn't usually an issue in these older models - they're quite hollow inside compared to modern detailed locomotives. A small decoder with flying leads (exposed wires) works perfectly. Cut the existing motor connections, solder your orange and grey decoder wires to the motor terminals, then connect red and black to the pickups. Add some heat shrink tubing to insulate everything, and you're done.

Common Issues and Troubleshooting

Even with the best preparation, things sometimes go sideways. Here's what we see most often at the shop and how to fix them. First up - the dreaded backwards-running locomotive. If your steam engine reverses when you select forward, you've got the decoder in backwards (8-pin) or the motor wires swapped (hardwired). Easy fix - flip the decoder or swap the orange and grey wires.

Hearing a high-pitched whine when you put a DC loco on DCC track? That's the motor protesting about the digital signal. It won't immediately destroy anything, but it's not doing your motor any favours either. Remove the loco immediately and check whether it's actually been converted to DCC. We see this weekly when people forget which of their fleet they've converted.

Intermittent operation or stuttering, especially over points? This is where stay-alive capacitors earn their keep. Modern decoders from DCC Concepts often include connections for these, and they make a massive difference for reliable running. Small shunters and 0-4-0 tanks particularly benefit from this addition.

If your decoder gets warm or hot, something's wrong. Either it's in backwards (though modern decoders usually have protection against this), there's a short circuit somewhere, or you're trying to draw too much current. Check your installation carefully, especially on hardwired jobs where stray wire strands can cause shorts.

Lost all lights but the motor still runs? You might've accidentally changed CV settings or have a loose connection to the lighting common (blue wire). Before panicking, try resetting the decoder to factory defaults - CV8 to 8 usually does it, though check your decoder manual as some brands differ.

Choosing the Right Decoder

Selecting the appropriate decoder involves more than just matching pin counts. Consider what features you actually need - there's no point paying for a 21-pin sound decoder with eight function outputs if you're fitting it to a basic diesel shunter with just headlights. However, don't go too basic either - that bargain decoder might lack features you'll want later.

For most OO and HO scale locomotives, an 8-pin decoder handles standard requirements perfectly. Brands like DCC Concepts offer excellent value with smooth motor control and reliable operation. Their decoders also include stay-alive connections as standard, which is brilliant for Australian conditions where track cleanliness can be challenging.

Sound decoders are a different beast entirely. You'll need adequate speaker space, proper enclosures for bass response, and usually a 21-pin or large 8-pin decoder to handle the extra circuitry. Many modern SDS and Australian outline models come speaker-fitted even in DC versions, making sound upgrades much simpler.

Don't forget about physical size constraints. That massive 21-pin sound decoder won't help if it doesn't fit in your tank engine. Measure available space carefully, considering not just the decoder but also wire routing and any stay-alive capacitors you might add. Sometimes a smaller decoder with a harness provides more installation flexibility than a larger direct-plug type.
